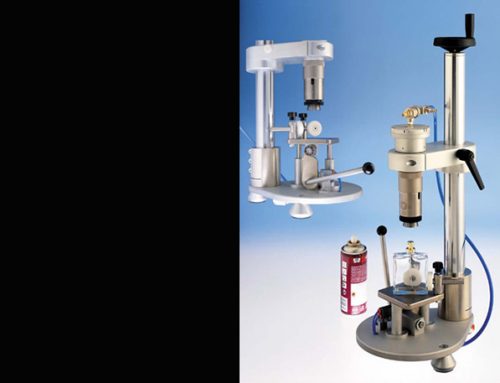

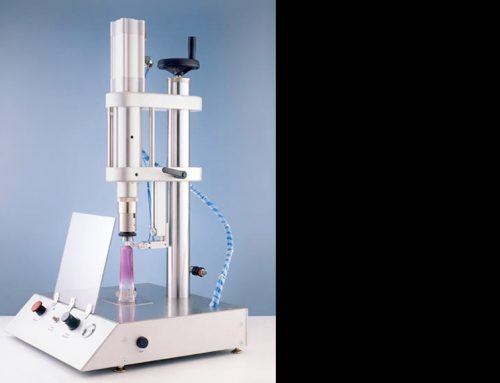

Pneumatic crimping machine (semiautomatic action). This machine is recommended for small and medium production. Machine cycle starts by simple pressing of two “start” buttons (to be pressed at same time) placed on machine base. Excluding 1 inch size, all crimping heads can be mounted in order to crimp all pump sizes.

Dimensions: 60x32x105 cm
Net weight: 45 kg
Working pressure: 6 bar/87 psi
Air consumption: 24Nl/min
Supplied accessories: n.2 centering tools, service keys and n.1 crimping head
(size on request).
Optional accessories:

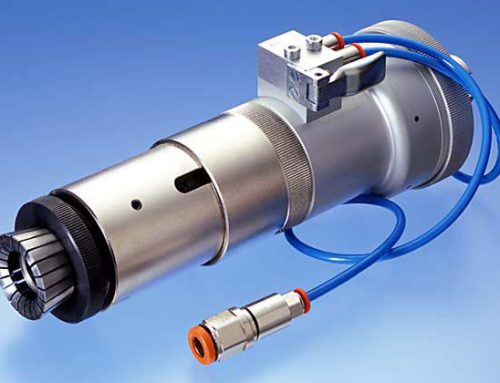

additional crimping heads
Standard crimping head diameter available: 11, 13, 15, 17, 18 and 20 mm
