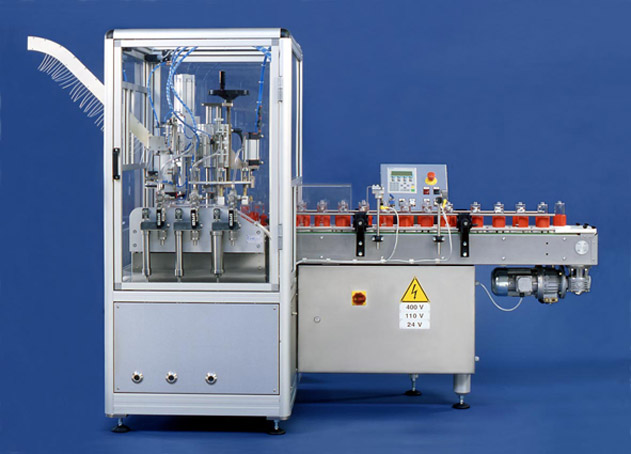

Automatic Perfume Crimping Machine LA1. 12 position perfume filling crimping line. The intake and expelling features positioned parallel on the same side leaving maximum inner space in order to carry out a high number of operations.
The quick change time of format and various program options make LA1 perfume crimping machine particularly versatile and suitable for small scale production.

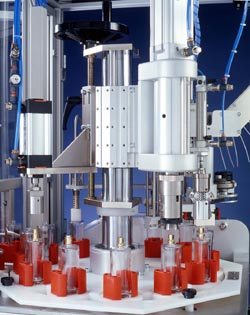

Included in LA1 apart from the three volumetric filling nozzle, the following settings are present ; one vacuum/level filling nozzle, one pump fitting device (insertion of micro pump in the bottle), one precrimping device (to center and temporarily fix the micro pump) and a crimping device. The bottle is moved by a closed circuit conveyor belt.
La1 can be integrated into existing lines.
Machine set up is open to custom requirement.

Automatic-Perfume-Crimping-Machine-partSTANDARD SET UP
– N°3 volumetric filling pistons
– Pneumatic vacuum filling device
– Automatic pump fitting device
– Pneumatic precrimping device
– Pneumatic crimping device
– N°1 set of adjustable pucks for regular shape bottles
– Incoming/outcoming conveyor belt

TECHNICAL INFO
– Filling capacity : 0-200 ml.
– Production rate : 1500-2200 pieces/h
– 8 different production programs, option to personalize productive cycles
– Power supply : 380V three phase
– Installed power : 1 kW
– Max air consumption : 80 Normal liters/minute
